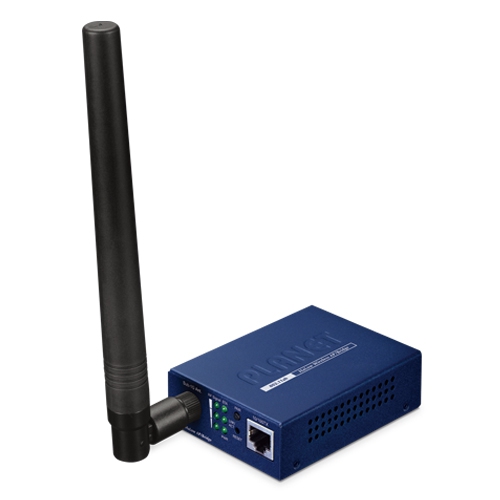

802.11ah Halow Wi-Fi Bridge/Station (EU868 Sub-1G, 1 10/100TX RJ45, 1 RS485, -20~60 degrees C, compact size metal housing, friendly WEB wizard, configurable AP/Station/Gateway modes, Modbus TCP, supports NMS-500/NMS-1000V controller and CloudViewerPro app)

SKU: HLB-100-EU868

802.11ah Halow Wi-Fi Bridge/Station

945.59 lei (TVA inclus)

Precomandă

Discounturi disponibile pentru categorie

Comenzi peste 2500 lei → 3% reducere
Comenzi peste 5000 lei → 5% reducere
Comenzi peste 10000 lei → 10% reducere

Hardware Specifications

Interfaces

1 10/100BASE-TX RJ45 port including
1 LAN/WAN port
Supports WAN mode and LAN mode, configurable via software.

Antenna Connector

1 × 50 Ω SMA Connector (Center Pin: SMA Female)

Serial Interface

1 x RS485 serial interface

Button

1 x reset button
　Press over 5 seconds to reset the device to factory default
1 x pair button

Dimensions (W x D x H)

94 x 70.3 x 26.2 mm

Weight

223

Power Requirements

5V 2A

Power Consumption

Installation

Wall-mount

LED Indicators

Power, Station, Strength signal

Wireless Interface Specifications

Standard

IEEE 802.11ah (Wi-Fi HaLow)
Compliance with regional regulatory requirements (FCC, ETSI)

Band Mode

Sub-1 GHz frequency operation

Frequency Range

868 MHz: European Union
902–928 MHz: North America

Operating Channels (US)

Sub1G:
1MHz
　1, 3, 5, 7, 9, 11, 13, 15, 17, 19, 21, 23, 25, 27, 29, 31, 33, 35, 37, 39, 41, 43, 45, 47, 49, 51 (Channels)
2MHz
　2,6,10,14,18,22,26,30,34,38,42,46,50 (Channels)
4MHz
　8,16,24,32,40,48 (Channels)
8MHz
　12,28,44 (Channels)

Operating Channels (EU)

Sub1G:
1MHz
　1, 3, 5, 7, 9

Max. Transmit Power (dBm)

Bandwidth	MCS 0 Typ. (dBm)	MCS 7 Typ. (dBm)	MCS 0 Range (dBm)	MCS 7 Range (dBm)
1MHz	21	17	20~22	16~18
2MHz	21	17	20~22	16~18
4MHz	21	17	20~22	16~18
8MHz	21	17	20~22	16~18

Receive Sensitivity

Bandwidth	MCS 0 (dBm)	MCS 1 (dBm)	MCS 2 (dBm)	MCS 3 dBm)	MCS 4 (dBm)	MCS 5 (dBm)	MCS 6 (dBm)	MCS 7 (dBm)
1MHz	-105	-102	-99	-96	-93	-89	-88	-87
2MHz	-103	-100	-97	-94	-90	-87	-85	-84
4MHz	-101	-97	-95	-91	-88	-84	-83	-81
8MHz	-97	-93	-91	-88	-85	-80	-79	-77

Software Features

LAN

Static IP / Dynamic IP

Wireless Mode

Gateway
Access Point
Station

Channel Width

1MHz, 2MHz, 4MHz, 8MHz

Encryption Security

WPA3 Personal

Wireless Security

Enable/Disable SSID Broadcast

Status Monitoring

Device status, wireless client List
PLANET Smart Discovery
DHCP client table
System Log supports remote syslog server

Management

Basic Management Interfaces

Web browser
SNMP v1/v2c
PLANET Smart Discovery utility and NMS controller supported

Secure Management Interfaces

TLSv1.2, SNMP v3

System Log

System Event Log

Others

Setup wizard
Dashboard
System status/service
Statistics
Connection status
Auto reboot/Diagnostics
Remote management through PLANET DDNS/Easy DDNS
Configuration backup and restore
Supports IGMP Proxy.
Supports UPnP.
Diagnostics

Central Management

PLANET NMSViewerPro, PLANET CloudViewerPro

Environment & Certification

Temperature

Operating: -20~ 60 degrees C
Storage: -40 ~ 70 degrees C

Humidity

Operating: 10 ~ 90% (non-condensing)
Storage: 5 ~ 90% (non-condensing)

Regulatory

CE, FCC, RoHS
