SKU: FSD-1008HP
| Hardware Specifications | |
|---|---|
| Copper Port | 10 10/100/BASE-TX MDI/MDIX Ports |
| PoE Injector Port | 8-port with 802.3af/at PoE injector function with Port-1 to Port-8 |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 2Gbps/non-blocking |
| Switch Throughput@64 bytes | 1.48Mpps@64 bytes |
| MAC Address Table | 1K entries, automatic source address learning and aging |
| Maximum Frame Size | 1522 bytes |
| Flow Control | IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex |
| LED Indicators | System Power (Green) 10/100BASE-TX RJ45 interfaces 10/100Mbps LNK/ACT (Green) PoE interfaces PoE-in-Use (Amber) |
| DIP Switch | Selectable operation mode Standard VLAN Extend |
| Dimensions (W x D x H) | 220 x 150 x 44 mm (1U height) |
| Enclosure | Metal |
| Weight | 1166 g |
| Power Requirements | AC 100~240V, 50/60Hz, 2.5A max. |
| Power Consumption/Dissipation | Max. 127 watts/433.3 BTU |
| Thermal Fan | Fanless |
| ESD Protection | ±8KV air gap discharge ±6KV contact discharge |
| Surge Protection | ±4KV |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af Power over Ethernet/PSE IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE Power Supply Type | End-span |
| PoE Power Output | Per port 54V DC, 540mA. max. 30 watts |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE Power Budget | 120 watts |
| Max. Number of Class 2 PDs | 8 |
| Max. Number of Class 3 PDs | 8 |
| Max. Number of Class 4 PDs | 4 |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3x Flow control and back pressure IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3az Energy Efficient Ethernet (EEE) |
| Environment | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Ordering Information | |
|---|---|
FSD-1008HP |

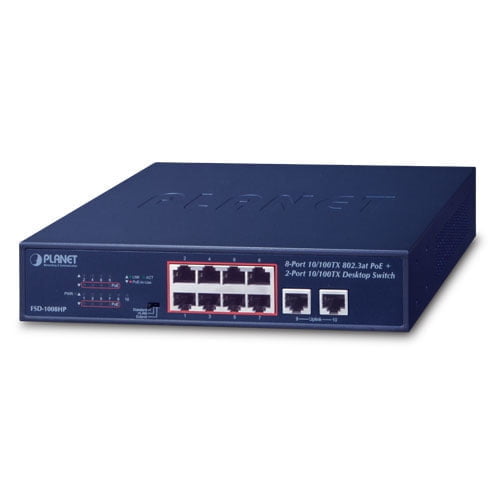

8-Port 10/100TX 802.3at PoE + 2-Port 10/100TX Desktop Switch |
