SKU: GSD-908HP
| Hardware Specifications | |
|---|---|
| 10/100/1000BASE-T Copper Ports | 9 auto-MDI/MDI-X ports |
| 802.3af/802.3at PoE+ Injector Port | 8 |
| DIP Switch | – Default mode for switch architecture – VLAN mode for Port-based VLAN |
| Dimensions (W x D x H) | 168 x 94 x 32 mm |
| Enclosure | Metal |
| Weight | 419g |
| Power Requirements | 55V DC, 2A |
| Power Consumption/Dissipation | Max. 100 watts / 341BTU |
| LED Indicators | System: Power (Amber) 10/100/1000T RJ45 Interfaces PoE-in-Use (Amber) 10/100/1000 LNK / ACT (Green), |
| Switching Specifications | |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 18Gbps |
| Switch Throughput@64bytes | 13.3Mpps |
| MAC Address Table | 2K entries |
| Jumbo Frame | 9216 bytes |
| Flow Control | IEEE 802.3x pause frame for full duplex; back pressure for half duplex |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af Power over Ethernet/PSE IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE Power Supply Type | End-span: 1/2 (+), 3/6 (-) |
| PoE Power Output | Per port 54V DC, 300mA. max. 15.4 watts (IEEE 802.3af) Per port 54V DC, 600mA. max. 30 watts (IEEE 802.3at) |
| PoE Power Budget | 100 watts |
| Number of PDs, 7 watts | 8 |
| Number of PDs, 15.4 watts | 6 |
| Number of PDs, 30 watts | 3 |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3x flow control and back pressure IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus |
| Environment | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Ordering Information | |
|---|---|
GSD-908HP |

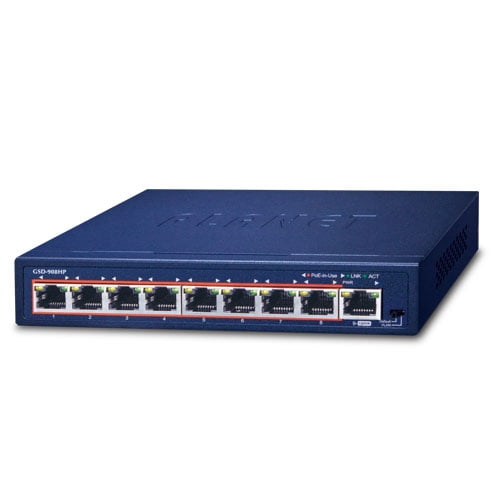

8-Port 10/100/1000T 802.3at PoE + 1-Port Gigabit Desktop Switch |
