SKU: VTS-700WP
| Hardware Platform | |
|---|---|
| Screen Size | 7- inch |
| Video Resolution | 1024 x 600 |
| Aspect Ratio | 16:9 |
| Touch Panel | Projected capacitive (multi touch) |
| Audio | |
| Standard | Wideband ADC/DAC 16KHz sampling Full-duplex hands-free speakerphone with AEC Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR) Packet Loss Concealment (PLC) Dynamic Adaptive Jitter Buffer DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO VQM voice quality monitoring |
| Voice Codec | Narrowband codec: G.711A/U, G.723.1, G.726-16/24/32/40, G.729AB, iLBC Wideband codec: G.722,Opus |
| Audio Streaming | Two-way audio |
| Microphone | Built-in microphone |
| Video | |
| Hardware video decoding | H.264 |
| Video call resolution | QVGA / CIF / VGA / 4CIF / 720P / 1080P |
| Network and Configuration | |
| Network Standard | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX |
| IP Configuration | IPv4/IPv6 Static / DHCP |
| Functions | SIP intercom supported (with the HDP-5240PT/HDP-1261PT) 6 SIP Lines VPN: L2TP / OpenVPN VLAN QoS RTCP-XR (RFC3611), VQ-RTCPXR(RFC6035) Wi-Fi:2.4/5G |
| Protocols | SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS RTP/RTCP/SRTP STUN L2TP SNTP FTP/TFTP HTTP/HTTPS TR-069 |
| Management | Web management portal Web-based packet dump Configuration export / import Firmware upgrade Syslog PLANET DDNS and Easy DDNS PLANET Smart Discovery Utility |
| General | |
| Power Requirements | 12V DC, 1A IEEE 802.3af Class 3 |
| Operating Temperature | -10 ~ 50 degrees C |
| Operating Humidity | 10 ~ 90% (non-condensing) |
| Weight | 276g |
| Dimensions (W x D x H) | 177.4x114x22.5 mm |
| Installation | Wall-mount |
| Emission | CE, FCC |
| Connectors | 10/100Mbps Ethernet, RJ45 DC power jack (12V/1A, female connector) Alarm Input Interface x8 RS485 Interface x1 (reserve) Short-out control port x1 (built-in relay) Relay: Max. DC30V / 2A, AC125V / 0.5A Doorbell short-in detect input x 1 |
| Ordering Information | |
|---|---|
VTS-700WP |

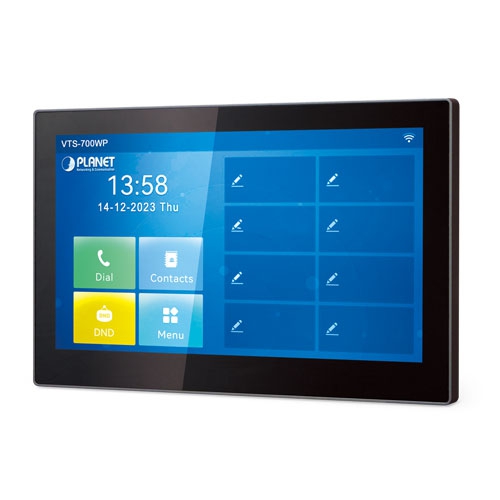

7-inch SIP Indoor Touch Screen PoE Video Intercom with Built-in Wi-Fi |
