SKU: POE-173
| Hardware Specifications | |
|---|---|
| Interface | LAN: 1 x RJ-45 STP, “Data” Input Port POE: 1 x RJ-45 STP, “Data + Power” Output Port AC Connector: 1 x AC Input power socket, IEC-320 C6 |
| Network Cable | Ultra PoE (60W): 4-pair UTP Cat. 5, 5e, 6 up to 100m (328ft) 802.3af / at PoE(15W / 30W): 2-pair UTP Cat. 3, 4, 5, up to 100m (328ft) |
| LED Indicator | System: Power x 1 (Green) PoE Port: Active, PoE ready / In Use x 1 (Green) |
| Data Rate | 10/100/1000Mbps |
| Dimensions (W x D x H) | 115 x 62.5 x 31 mm |
| Weight | 227g |
| Unit Output Voltage | DC 50-57V, 1.2A |
| Power Requirements | 100-240V AC @50/60Hz, 1.5A max. |
| Power Consumption | 60 watts max. |
| Power over Ethernet | |
| PoE Standard | Ultra PoE over 4-pairs UTP, High Power over Ethernet End-Span / Mid-Span PSE |
| PoE Power Supply Type | End-Span + Mid-Span |
| Power Pin Assignment | Pair 1 End-Span: 1/2(+), 3/6(-) Pair 2 Mid-Span: 4/5(+), 7/8(-) |
| PoE Power Output | DC 50-57V/60-watt PoE via 4-pairs DC 50V-57V/30-watt PoE via 2-pairs |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet |
| Regulation Compliance | FCC Part 15 Class B, CE |
| Environment | |
| Operating Temperature | 0 ~ 50 degrees C |
| Storage Temperature | -10 ~ 70 degrees C |
| Operating Humidity | 5 ~ 95%, Relative Humidity, non-condensing |
| Storage Humidity | 5 ~ 95%, Relative Humidity, non-condensing |
| Ordering Information | |
|---|---|
POE-173 |

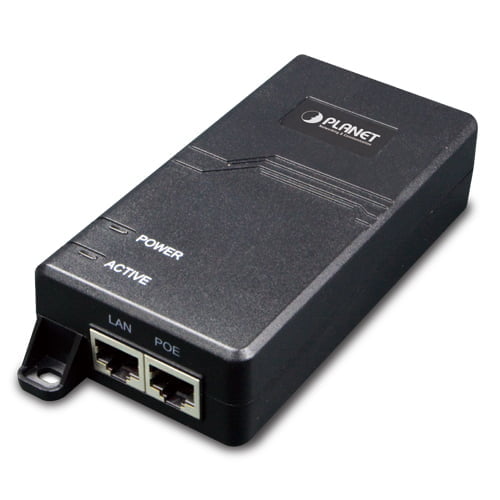

60-watt Ultra Power over Ethernet Injector (10/100/1000Mbps, 4-Pair) |
