SKU: VR-100
| Hardware Specifications | |
|---|---|
| Ethernet | 5 10/100/1000BASE-T RJ45 Ethernet ports including
|
| USB Port | 1 USB 3.0 port for system configuration backup and restore |
| Reset Button | Reset to factory default |
| Thermal Fan | Fanless |
| LED Indicators | PWR (Green) Internet (Green) LAN/WAN (Green) |
| Installation | Desktop installation or rack mounting (optional) |
| Power Requirements | 100-240V AC, 1A max. |
| Power Consumption | 13W max. |
| Weight | 0.85kg |
| Dimensions (W x D x H) | 217 x 135 x 43.5 mm |
| Enclosure | Metal |
| Security Service | |
| Firewall Security | Cybersecurity Stateful packet inspection (SPI) Anti-DoS/DDoS protection |
| ALG (Application Layer Gateway) | SIP, RTSP, FTP, H.323, TFTP |
| NAT | Port forwarding DMZ Host UPnP |
| Content Filtering | MAC filtering IP filtering Web filtering |
| Bandwidth Management | Outbound load balancing Failover for dual-WAN QoS (Quality of Service) |
| Networking | |
| Operation Mode | Routing mode |
| Routing Protocol | Static route, dynamic route (RIP), OSPF |
| VLAN | 802.1q tag-based, port-based, multi-VLAN |
| Multicast | IGMP proxy |
| NAT Throughput | Max. 900Mbps |
| Outbound Load Balancing | Supported algorithms: Weight |
| Protocol | IPv4, IPv6, TCP/IP, UDP, ARP, HTTP, HTTPS, NTP, DNS, PLANET DDNS, PLANET Easy DDNS, DHCP, , PPPoE, SNMPv1/v2c/v3 |
| Key Features | Captive portal RADIUS server/client |
| VPN | |
| VPN Function | IPSec/Remote server (Net-to-Net, Host-to-Net), GRE, PPTP server, L2TP server, SSL server/client (Open VPN) |
| VPN Throughput | Max. 60Mbps |
| Encryption Methods | DES, 3DES, AES or AES-128/192/256 encrypting |
| VPN Tunnels | Max. 60 |
| Authentication Methods | MD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication algorithm |
| Management | |
| Basic Management Interfaces | Web browser SNMP v1, v2c PLANET Smart Discovery utility/UNI-NMS supported |
| Secure Management Interfaces | SSHv2, TLSv1.2, SNMP v3 |
| System Log | System Event Log |
| Others | Setup wizard Dashboard System status/service Statistics Connection status Auto reboot Diagnostics |
| Standards Conformance | |
| Regulatory Compliance | CE, FCC |
| Environment Specifications | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -10 ~ 60 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Standard Accessories | |
| Packet Contents | VR-100 x 1 Quick Installation Guide x 1 Power Cord x 1 Feet Pads x 4 |
| Ordering Information | |
|---|---|
VR-100 |

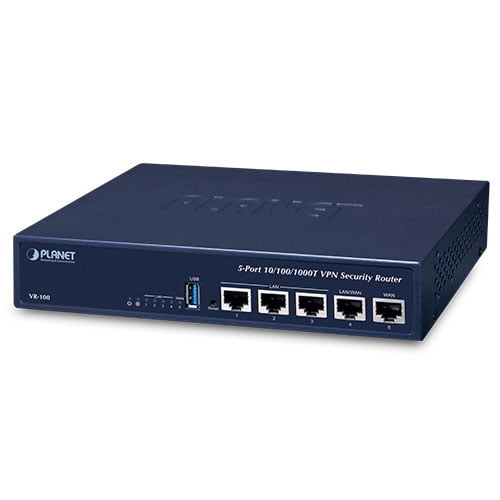

5-Port 10/100/1000T VPN Security Router |
| Accessories | |
|---|---|
RKE-10B |
PLANET Desktop Switch 10-inch Rack Mount Kits |
