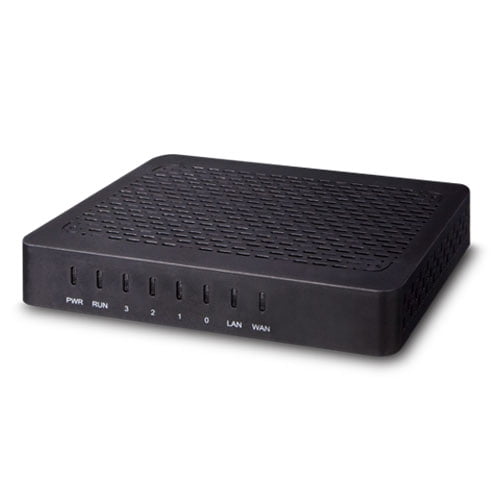

4-Port SIP VoIP Gateway (4 FXS) VGW-420FS

SKU: VGW-420FS

4-Port SIP VoIP Gateway (4*FXS): IETF SIP 2.0, T.38/T.30, STUN/Outbound Proxy, TLS/SRTP Security,?VLAN, QoS, SNMP, TR069, Caller ID, DND, Three-way conference?

520.76 lei (TVA inclus)

Precomandă

Discounturi disponibile pentru categorie

Comenzi peste 2500 lei → 3% reducere
Comenzi peste 5000 lei → 5% reducere
Comenzi peste 10000 lei → 10% reducere

Hardware
WAN	1 x 10/100BASE-TX RJ45 port
LAN	1 x 10/100BASE-TX RJ45 port
Voice	4 x RJ11 connection (4 x Foreign eXchange Station)
Weight	200g
Dimensions (W x D x H)	140 x 86 x 25 mm
Power Requirements	100-240VAC, 50-60 Hz@DC12V 1A
Power Consumption	5W
Protocols and Standard
FXS	Dial Mode: DTMF and Pulse Pulse: 10 and 20 PPS Caller ID: DTMF/FSK CLI Presentation Max Cable Length: 3KM Reversed Polarity Programmable Call Progress Tone
Voice & Fax	G.711A/U law, G.723.1, G.729A/B,G.726 and iLBC Silence Suppression Comfort Noise Generation(CNG) Voice Activity Detection(VAD) Echo Cancellation(G.168), with up to 128ms Adaptive (Dynamic) Jitter Buffer Hook Flash Programmable Gain Control T.38/Pass-through Modem/POS DTMF mode: Signal/RFC2833/INBAND VLAN 802.1P and 802.1Q Layer3 QoS and DiffServ
VoIP	Protocol: SIP v2.0 (UDP/TCP),RFC3261,SDP,RTP(RFC2833), RFC3262, 3263,3264,3265,3515,2976,3311 RTP/RTCP, RFC2198, 1889 RFC4028 Session Timer RFC3266 IPv6 in SDP RFC2806 TEL URI RFC3581 NAT and rport Primary/Backup SIP Server Outbound Proxy DNS SRV/ A Query/NATPR Query SIP Trunk Early Media/Early Answer NAT:STUN, Static/Dynamic NAT
Supplementary Service	Call Waiting Blind Transfer Attend Transfer Call Forward on Busy Call Forward on No Reply Unconditional Call Forward Warm/Immediately Hotline Call Hold Do-not-disturb 3-Way Conference Message Waiting Indicator
Software Features	Hunting Group Web ACL Telnet ACL Action URL PPPoE/IPv4 Digitmap Bandwidth Optimization Routing Rules based Prefixes Caller/Called Number Manipulation
Management	SNMP v1/v2/v3 TR069 Auto Provisioning Web/Telnet Configuration Backup/Restore Firmware Upgrade via Web CDR Syslog Ping and Tracert Test Network Capture Outward Test(GR909) NTP and Daylight Saving Time IVR local Maintenance
Environments
Operating Temperature	0 ~ 40 degrees C
Storage Temperature	-20 ~ 80 degrees C
Operating Humidity	10%~90% relative humidity, non-condensing
Emission	CE, FCC

Ordering Information
VGW-420FS	4-Port SIP VoIP Gateway (4 FXS)

Brand: PLANET
Subcategorie: VoIP Gateway
Software: Cu management
Tip echipament: OFFICE
compari: Dispozitiv VoIP
Numar Porturi RJ45: 2 x 10/100Mbps
Interfata: 4 x FXS Inclus

Fișă tehnică (PDF)
Manual instalare (PDF)
