SKU: UPOE-400
| Hardware Specifications | |
|---|---|
| Copper Ports | “Data” Input Ports “Data + Power” Output Ports 4 x RJ45 |
| LED Indicator | System: Power (Green) PoE-in-Use: 802.3bt/PoH (Green) 802.3at/af (Orange) PoE Usage: 50W/100W/160W (Amber) |
| Data Rate | 10/100/1000/2500/5000Mbps |
| Power Requirements | DC 52~54V |
| Power Consumption (Ethernet Full Loading) | System ON without loading AC 110V: 0.4watts/1.3BTU AC 220V: 0.3watts/1BTU Full loading with PoE AC 110V: 242watts/825BTU AC 220V: 236watts/805BTU |
| DIP Switch | 802.3bt:90W PoE Output PoH + Legacy: 95W PoE Output Force: 60W PoE Output |
| Dimensions (W x D x H) | 94 x 70.3 x 39.2mm |
| Weight | 275g |
| Enclosure | Metal case |
| Installation | Wall-mount and DIN-rail kit (optional) |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3bt PoE++, 4-pair type 4 PSE Compatible with IEEE 802.3at PoE+ PSE |
| PoE Power Supply Type | End-span + Mid-span |
| Power Pin Assignment | End-span: 1/2 (-), 3/6 (+); Mid-span: 4/5 (+), 7/8 (-) |
| PoE Power Budget (max.) | 160 watts |
| Number of devices that can be powered | 4 |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class B, CE |
| Standards Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3bz 2.5G/5GBASE-T IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt Power over Ethernet Plus Plus |
| Environment | |
| Temperature | Operating: 0~50 degrees C Storage: -10~70 degrees C |
| Humidity (non-condensing) | Operating: 5~95% Storage: 5~95% |
| Ordering Information | |
|---|---|
UPOE-400 |

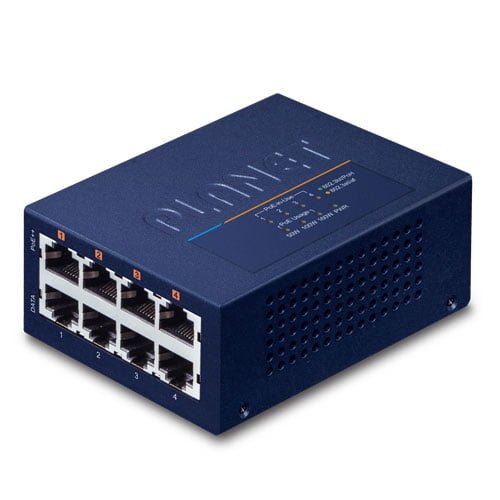

4-Port Multi-Gigabit 802.3bt PoE++ Injector Hub (160 watts) |
