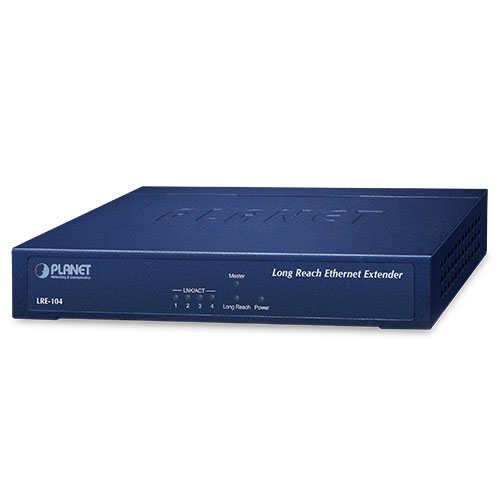

4-Port 10/100TX + 1-Port UTP/BNC Long Reach Ethernet Extender LRE-104
Compară
×

4-Port 10/100TX + 1-Port UTP/BNC Long Reach Ethernet Extender LRE-104

SKU: LRE-104

4-Port 10/100TX + 1-Port UTP/BNC Long Reach Ethernet Extender (Up to 800 meters UTP cable/1200 meters phone wire/2000 meters coaxial cable, Master/Slave mode DIP switch)
534.46 lei (TVA inclus)
Precomandă
Discounturi disponibile pentru categorie
  • Comenzi peste 2500 lei → 3% reducere
  • Comenzi peste 5000 lei → 5% reducere
  • Comenzi peste 10000 lei → 10% reducere
Ridicare din depozit București
Gratuit
Livrare prin curier
Gratuit peste 2500 lei
Plată securizată
Card · PayPal
Hardware Specifications
LAN Ethernet Interface
Connector 4 x 10/100BASE-TX RJ45 copper port, auto-negotiation / auto-MDI/MDI-X
Cabling Cat5e UTP or above
Maximum distance 100 meters
Maximum frame size 1522 bytes
Long Reach Interface
Connector 1 x RJ45 copper port 1 x BNC female port
Cabling
  • Cat5 UTP cable

  • phone wire
  • Coaxial cable: 75 ohm

  • RG-6/U cable, less than12Ω/1000 ft

  • RG-59/U cable, less than 30Ω/1000 ft
Maximum Distance Max. Data transmission of 800m (Cat5 UTP)
Max. Data transmission of 1200m (phone wire)		 Max. Data transmission of 2000m (6,561ft.)
Long Reach Ethernet Standard IEEE 1901
Modulation Type Wavelet-OFDM
Security 128-bit AES encryption
Frequency Band 2~28MHz
DIP Switch Select Master or Slave mode
Dimensions (W x D x H) 154.6 x 86.0 x 26.3 mm
Weight 347g
Housing Metal
Power Requirement 12V DC, 1A external power
LED Indicators Power: Green
LAN: Green, 10/100Mbps LNK/ACT
Long Reach: Green, LNK
Master: Green
Compatible Long Reach Extender LRE-101
LRE-101C
Standards Conformance
Standards Compliance IEEE 802.3/ 802.3u Ethernet standard compliant
IEEE 802.3x Full-duplex flow control
IEEE 802.1q Tag VLAN Transparent, Multicast pass-through
Regulatory Compliance FCC Part 15 Class A, CE
Environment
Temperature Operating: 0~50 degrees C
Storage: -10~70 degrees C
Humidity Operating: 5~95% (non-condensing)
Storage: 5~95% (non-condensing)
Performance
Distance (meter)
  Upstream / Downstream (Unit: Mbps)
  UTP Cable (RJ45) Phone Wire (RJ11) Coaxial Cable (BNC)
200m 78/78 84/79 85/80
400m 78/70 82/76 83/80
600m 73/63 62/45 81/80
800m 8/3 35/23 83/82
1000m － 28/22 79/77
1200m － 8/3 68/65
1400m － － 56/47
1600m － － 38/30
1800m － － 23/23
2000m － － 46
**The actual data rate will vary in the quality of the coaxial cable, UTP cables or phone wire and environmental factors.
**UTP and BNC cannot be used for long reach port at the same time.
Ordering Information

LRE-104

 4-Port 10/100TX + 1-Port UTP/BNC Long Reach Ethernet Extender
  • Brand: PLANET
  • Subcategorie: Extender de retea
  • Software: Fara management
  • Poe: NON POE
  • Tip echipament: OFFICE
  • compari: Switch de retea
  • Numar Porturi RJ45: 4 x 10/100Mbps
