SKU: ISW-621T
| Hardware Specifications | |
|---|---|
| Copper Interface | Ports 4 x 10/100Base-TX, auto negotiation, auto-MDI / MDI-X Cable |
| Optical Interface | Port 2 x 100Base-FX Cable Mode Distance Wavelength Launch Power Receive Sensitivity Max. Input Power |
| Dimensions (W x D x H) | 135 x 87.8 x 32 mm |
| Weight | 442g |
| Power Requirements | 12~48V DC Redundant power with polarity reverse protection function |
| Power Consumption / Dissipation | Max. 16 watts / 54 BTU |
| Installation | DIN rail kit and wall mount ear |
| Alarm | Provides one relay output for power failure Alarm relay current carry ability: 1A @ DC 24V |
| Switching Specifications | |
| Switch Processing Scheme | Store-and-Forward |
| Address Table | 2K entries |
| Buffer | 1Mbit |
| Flow Control | Back pressure for half duplex, IEEE 802.3x pause frame for full duplex |
| Switch Fabric | 1.2Gbps |
| Throughput (Packet Per Second) | 0.89Mpps @ 64Bytes |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 Ethernet, 10Base-T IEEE 802.3u Fast Ethernet, 100Base-TX, 100Base-FX IEEE 802.3x full-duplex Flow Control |
| Temperature | Operating: -40~75 degrees C Storage: -40~85 degrees C |
| Operating Humidity | Operating: 5~90% Storage: 5~90% (non-condensing) |
| Regulation Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC60068-2-32(Free fall) IEC60068-2-27(Shock) IEC60068-2-6(Vibration) |
| Ordering Information | |
|---|---|

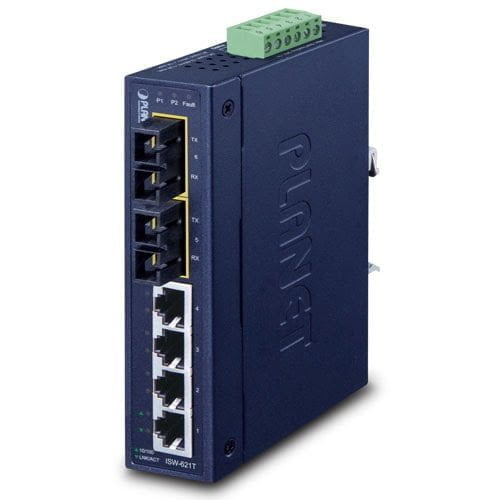

ISW-621T |
4+2 100FX Port Multi-mode Industrial Ethernet Switch – 2km (-40~75 degrees C operating temperature) |
ISW-621TS15 |
4+2 100FX Port Single-mode Industrial Ethernet Switch – 20km (-40~75 degrees C operating temperature) |
