SKU: FGSD-2621P
| Hardware Specifications | |
|---|---|
| Fast Ethernet Copper Ports | 24 x 10/100BASE-TX RJ45 auto-MID/MDI-X Port Supports IEEE 802.3at PoE+ Injector |
| Gigabit Ethernet Copper Ports | 2 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports (Port 26 shared with SFP port) |
| Gigabit SFP Ports | 1 x 1000BASE-SX/LX/BX SFP interface (shared with Port 26) |
| DIP Switch | Selectable operation mode Standard VLAN Extend |
| Dimensions (W x D x H) | 280 x 180 x 43 mm (1U height) |
| Enclosure | Metal |
| Weight | 1870g |
| Power Requirements | 100~240V AC, 50/60Hz, 5A max. |
| Power Consumption/Dissipation | Max. 217 watts/740 BTU |
| Thermal Fan | 1 |
| ESD Protection | Contact discharge of ±6KV DC, Air discharge of ±8KV DC |
| Surge Protection | Differential Mode ±4KV, Common Mode ±6KV |
| Installation | Desktop or rack-mount installation |
| LED | System: Power (Green) PoE Max. (Green) 10/100/1000T RJ45 Interfaces 10/100/1000 LNK / ACT (Green) PoE-in-Use (Amber) 1000X SFP Interfaces 1000 LNK / ACT (Green) |
| Switching | |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 8.8Gbps/non-blocking |
| Switch Throughput@64bytes | 6.5Mpps |
| MAC Address Table | 16K entries |
| Jumbo Frame | 16K bytes |
| Flow Control | IEEE 802.3x pause frame for full duplex; back pressure for half duplex |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE Injector Ports | 24 |
| PoE Power Supply Type | End-span: 1/2 (+), 3/6 (-) |
| PoE Power Output | Per port 55V DC, 600mA. max. 32 watts |
| PoE Power Budget | 185 watts |
| Number of PDs, 7 watts | 24 |
| Number of PDs, 15.4 watts | 12 |
| Number of PDs, 30 watts | 6 |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3z Gigabit SX/LX IEEE 802.3x flow control and back pressure IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3az Energy-Efficient Ethernet |
| Environment | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5~ 95% (non-condensing) |
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Ordering Information | |
|---|---|
FGSD-2621P |

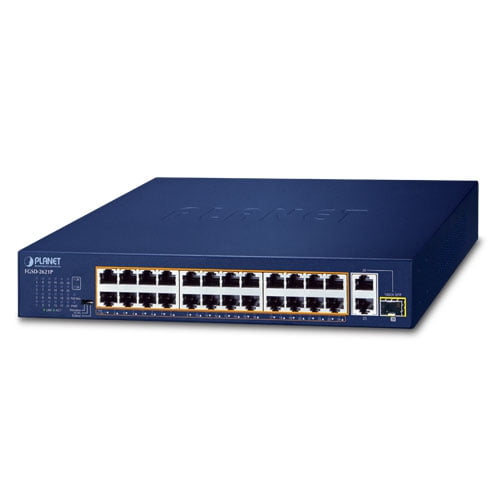

24-Port 10/100TX 802.3at PoE + 2-Port 10/100/1000T + 1-Port Shared 1000X SFP Desktop Switch |
