SKU: GSW-2620HP
| Hardware Specifications | |
|---|---|
| 10/100/1000BASE-T Copper Ports | 24 auto-MDI/MDI-X ports |
| 802.3af/802.3at PoE+ Injector Port | 24 |
| 1000BASE-X SFP/mini-GBIC Slots | 2 |
| DIP Switch | Selectable operation mode Standard VLAN Extend |
| Dimensions (W x D x H) | 441 x 207 x 44 mm (1U height) |
| Enclosure | Metal |
| Weight | 2.44kg |
| Power Requirements | 100~240V AC, 50/60Hz, 5A max. |
| Power Consumption/Dissipation | Max. 272 watts/928 BTU |
| Thermal Fan | 2 |
| Protection | 6KV surge protection 8KV ESD protection |
| LED Indicators | System: Power (Green) PoE Usage 80% (Green) 10/100/1000T RJ45 Interfaces (Ports 1 to 24) 10/100/1000 LNK / ACT (Green), PoE-in-Use (Amber) 1000X SFP Interfaces (Ports 25 to 26) 1000 LNK / ACT (Green) |
| Switching | |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 52Gbps/non-blocking |
| Switch Throughput@64bytes | 38.7Mpps |
| MAC Address Table | 8K entries |
| Jumbo Frame | 9216 bytes |
| Flow Control | IEEE 802.3x pause frame for full duplex; back pressure for half duplex |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3at Power over Ethernet Plus/PSE Backward compatible with IEEE 802.3af Power over Ethernet |
| PoE Power Supply Type | End-span: 1/2 (+), 3/6 (-) |
| PoE Power Output | Per port 54V DC, 300mA. max. 15.4 watts (IEEE 802.3af) Per port 54V DC, 600mA. max. 30 watts (IEEE 802.3at) |
| PD Alive Check | Yes |
| PoE Power Budget | 250 watts |
| Number of PDs, 7 watts | 24 |
| Number of PDs, 15.4 watts | 16 |
| Number of PDs, 30 watts | 8 |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3z Gigabit SX/LX IEEE 802.3x flow control and back pressure IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3az Energy-Efficient Ethernet |
| Environment | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Ordering Information | |
|---|---|
GSW-2620HP |

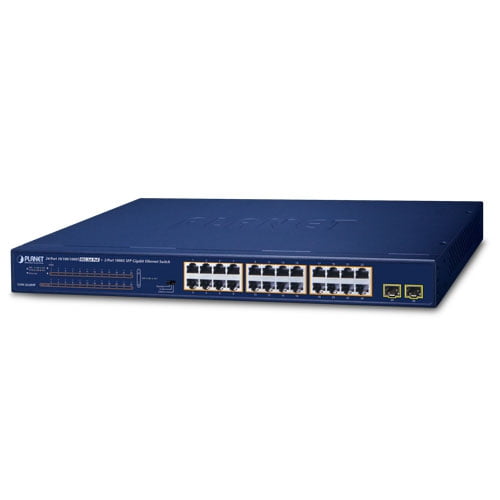

24-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Gigabit Ethernet Switch |
