SKU: XT-815A
| Hardware Specifications | |
|---|---|
| SFP+ Port | Dual 10GBASE-X SFP+ interfaces Backward compatible with 100BASE-FX, 1000BASE-X and 2500BASE-X SFP transceivers |
| Fiber Mode | May vary on SFP+/SFP Module |
| Fiber Port Type (connector) | SFP, LC type |
| Fiber Maximum Distance | May vary on SFP Module |
| Network Cables | May vary on SFP+ and SFP modules |
| Enclosure | Metal case |
| Dimensions (W x D x H) | 94 x 70.3 x 26.2 mm |
| Weight | 195g |
| Power Supply | DC 5V, 2A Power Socket, external AC-to-DC adapter |
| Installation | Wall-mount or DIN-rail installation (optional) |
| LED | System: PWR (Green) SFP+ Port: 2.5Gbps/1Gbps LNK/ACT(Green) 10Gbps /100Mbps LNK/ACT(Amber) |
| Layer 2 Features | |
| Switch Architecture | Store-and-Forward |
| Fabric | 40Gbps backbone to ensure high-speed data transmission |
| Forwarding Rate | Non-blocking, full wire-speed forwarding rate |
| Flow Control | Half duplex: Back pressure eliminates packet loss Full duplex: IEEE 802.3x pause frame support for efficient flow control |
| Maximum Frame Size | Supports jumbo frames up to 12K |
| VLAN Support | Transparent 802.1Q VLAN pass-through for seamless integration in tagged network environments |
| Priority Switching | 8-level QoS priority switching for traffic optimization Supports 802.1p priority for efficient traffic management |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Protocols and Standards Compliance | IEEE 802.3z Gigabit SX/LX IEEE 802.3ae 10 Gigabit Ethernet IEEE 802.3x Flow Control IEEE 802.3az Energy Efficient Ethernet IEEE 802.1p Class of Service |
| Environment | |
| Temperature | Operating: 0 ~ 50 degrees C Storage: -10 ~ 70 degrees C |
| Humidity | 5% ~ 95% non-condensing |
| Ordering Information | |
|---|---|
XT-815A |

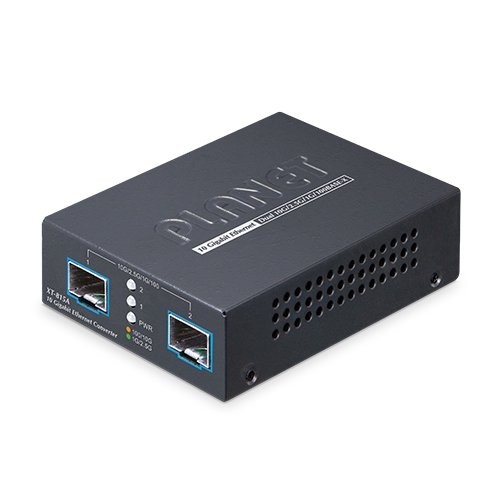

2-Port 10G/2.5G/1G/100BASE-X SFP+ Media Converter |
