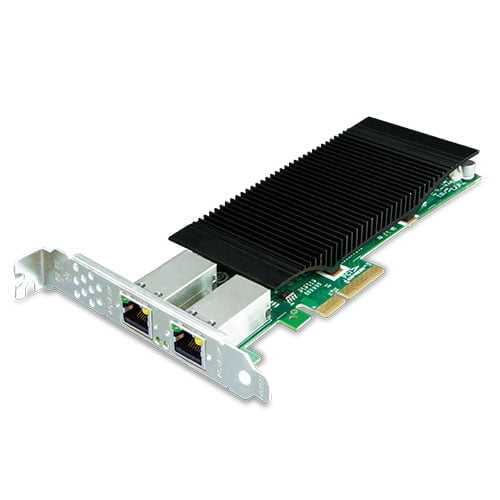

2-Port 10/100/1000T 802.3at PoE+ PCI Express Server Adapter (60W PoE budget, PCIe x4, -10~60 degrees C) ENW-9720P

Brand: PLANET
Subcategorie: Placa de retea
Numar Porturi RJ45: 2 x 10/100/1000Mbps
Slot: PCI Expres
compari: Alte accesorii calculatoare
Poe: POE

SKU: ENW-9720P

2-Port 10/100/1000T 802.3at PoE+ PCI Express Server Adapter (60W PoE budget, PCIe x4, -10 to 60 C, Intel Ethernet Controller)

520.76 lei (TVA inclus)

Precomandă

Discounturi disponibile pentru categorie

Hardware Specifications
Controller	Intel I350AM2
Interface	2 x RJ45
LED Indicator	1000Mbps: LINK: Yellow, ACT: Green 10Mbps/100Mbps: ACT: Green
Data Rate	10/100/1000Mbps
Dimensions (W x D x H)	169 x 121 x 19 mm
Weight	161 g
PCIe Bus Type	PCI Express v2.0 (2.5GT/s) x4
Power Supply	PCIe power supply 3.3V±9% / 12V±8%
Typical Power Consumption	3 watts max
Single PoE Output	30 watts
Advanced Functions
Layer 2 Features	IEEE 802.1Q VLAN support
Operating System Support	Windows Server 2008R2 64bits Windows Server 2012 64bits Windows Server 2016 64bits Windows 7 32/64bits Windows 8 32/64bits Windows 10 32/64bits Linux 2.6.x, Linux 4.x VMware® 6.0
Standards Conformance
Standards Compliance	IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.1Q VLANs IEEE802.3x Flow Control IEEE802.3af Power over Ethernet IEEE802.3at Power over Ethernet Plus
Regulatory Compliance	FCC Part 15 Class B, CE
Environment
Operating Temperature	-10 ~ 60 degrees C
Storage Temperature	-40 ~ 70 degrees C
Operating Humidity	5 ~ 90%, relative humidity, non-condensing
Storage Humidity	5 ~ 90%, relative humidity, non-condensing
Standard Accessories
Package Contents	ENW-9720P Server Adapter Quick Installation Guide Low Profile Bracket

Ordering Information
ENW-9720P	2-Port 10/100/1000T 802.3at PoE+ PCI Express Server Adapter
