SKU: ANT-OM5D-KIT
| Electrical Specifications | |
|---|---|
| Frequency Range | 2.4GHz and 5GHz |
| Antenna Gain | 2.4GHz: 4.5dBi 5GHz: 7dBi |
| Antenna Radiation Type | Omni-directional |
| VSWR | ≦2.0 |
| HPBW/Horizontal | 360 degrees |
| HPBW/Vertical | 2.4GHz: 80 degrees 5GHz: 55 degrees |
| Polarization | Vertical |
| Impedance | 50Ω |
| Mechanical Characteristics | |
| Radome Color | White |
| Radome Material | ABS |
| Connector Material | Brass |
| Connector | N -type male (N-type plug) |
| Dimensions (Φ x H) | 23 x 180 mm |
| Weight | 65g |
| Environmental Specifications | |
| Temperature | -20 ~ 65 degrees C |
| Humidity | 95% @ 55 degrees C |
| Ordering Information | |
|---|---|
ANT-OM5D-KIT |

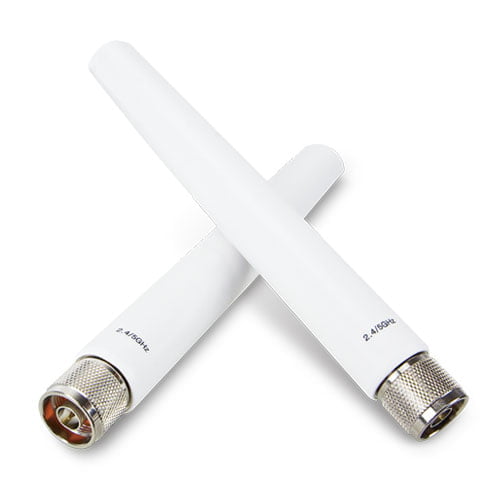

2.4/5GHz Dual Band Omni-directional Antenna |
