SKU: WL-LTNA
| Electrical Specifications | |
|---|---|
| Type | Gas discharged |
| Frequency | 0 ~ 6GHz |
| Impedance | 50Ω |
| V.S.W.R | ≤ 1.2 @6GHz |
| Gain Loss | ≤ 0.2dB |
| Maximum Withstand Current | 20 ~ 100kA |
| DC Breakdown Voltage | 90±20% (@100V/S) |
| Impulse Breakdown Voltage | ＜600V（@1KV/μs） |
| AC Discharge Current | 5A（@50Hz） |
| Surge Discharge Current | 5KA （@8/20μs） |
| Environment Specifications | |
| Temperature Range | -40 ~ 65 degrees C |
| Humidity | 85 degrees C / 85% RH-48hrs |
| Mechanical Specifications | |
| Connector Type | N male to N female |
| Connector Body Material | Nickel-plated brass |
| Body Material | Anodized aluminum |
| Pin Material | Gold-plated brass |
| Dimensions (max.) | 20 x 68 mm (Φ x H) |
| Weight | 124g |
| Ordering Information | |
|---|---|
WL-LTNA |

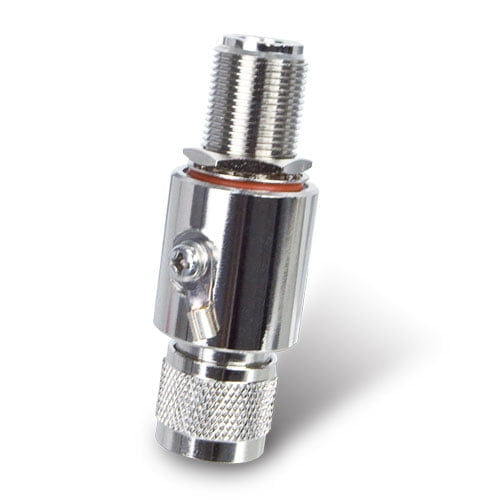

2.4/5GHz Lightning Arrester (N-male to N-female) |
| Accessories | |
|---|---|
WL-NM-0.6 |
0.6 meter N-male (male pin) to N-male (male pin) Cable |
WL-SMA-0.6 |
0.6M RP-SMA(M) to N(M) Cable |
WL-SMA-6 |
6M RP-SMA(M) to N(M) Cable |
ANT-OM8 |
2.4GHz 8dBi Omni-directional Antenna |
ANT-OM15 |
2.4GHz 15dBi Omni-directional Antenna |
ANT-FP9 |
2.4GHz 9dBi Flat Panel Directional Antenna |
ANT-FP14D |
2.4GHz 14dBi Flat Panel Dual Polarization Directional Antenna |
ANT-FP18 |
2.4GHz 18dBi Flat Panel Directional Antenna |
ANT-SE18 |
2.4GHz 12-18dBi Adjustable Sector Antenna |
ANT-GR21 |
2.4GHz 21dBi Grid Directional Antenna |
ANT-OM10A |
5GHz 10dBi Omni-directional Antenna |
ANT-FP14AD |
5GHz 14dBi Flat Panel Dual Polarization Directional Antenna |
ANT-FP18A |
5GHz 18dBi Flat Panel Antenna |
ANT-FP23A |
5GHz 23dBi Flat Panel Directional Antenna |
ANT-SE17A |
5GHz 16.5dBi Sector Antenna |
