SKU: KVM-210-08M
| Hardware | |
|---|---|
| Number of Ports | 8 |
| Maximum | 64 by cascading (KVM-210-08 x 8) |
| PC Ports | Keyboard： USB Type A female head Mouse： USB Type A female head Video： 8 x VGA DB15 Blue Female Head |
| Port Select Panel | Number Key：10 Reset：1 Enter：1 LED：8 Segment display：1 |
| LCD Panel | Monitor 17‘’ SXGA COLOR TFT-LCD Video Resolution 1280 x 1024 @ 60HZ Local Pixel Pitch 0.264 x 0.264 mm Support Color 16.7M colors Contrast Ratio 1000:1 Backlight LED |
| LCD Button | 6 |
| Console USB Hub Ports | 3 x USB 2.0 Type A female |
| Keyboard | 100-key chocolate ultra-thin keyboard |
| Touch Pad | 1 |
| Housing | Metal |
| Dimensions (W x D x H) | 445 x 544 x 45mm |
| Weight | 10.23kg |
| Power Requirement | 12V DC, 4A |
| Installation | 1U rack-mountable |
| Management | |
| PC Selection | Port select button Hotkeys on keyboard OSD (on screen display) |
| Scan Interval | 3~60 seconds |
| Security | User password and super password |
| Environment & Certification | |
| Operating Temperature | 0 ~ 50 degrees C |
| Storage Temperature | -20 ~ 60 degrees C |
| Operating Humidity | 0-80% RH, no coagulation |
| Regulatory | CE, FCC |
| Ordering Information | |
|---|---|
KVM-210-08M |

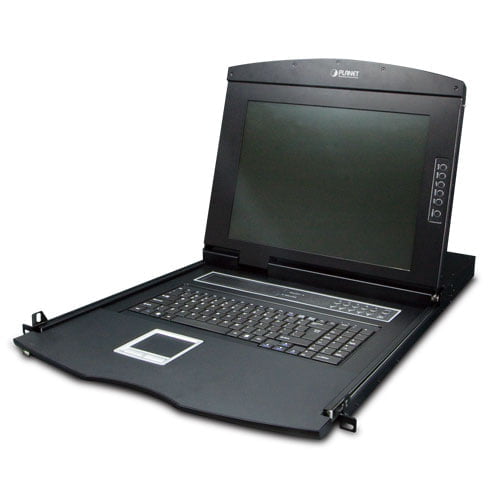

17″ 8-Port Combo VGA LCD KVM Switch |
| Accessories | |
|---|---|
KVM-KC1-1.8 |
1.8M USB KVM Cable |
KVM-KC1-3 |
3M USB KVM Cable |
KVM-KC1-5 |
5M USB KVM Cable |
