SKU: IKVM-210-16M
| Hardware | |
|---|---|
| Number of Ports | 16 |
| Maximum | 256 by cascading (KVM-210-16 x 16) |
| PC Ports | Keyboard：USB Type A female head Mouse：USB Type A female head Video：16 x VGA DB15 Blue Female Head |
| Port Select Panel | Number Key：10 Reset：1 Enter：1 LED：16 Segment display：1 |
| LCD Panel | Monitor ：17＂ SXGA COLOR TFT-LCD Video Resolution：1280 x 1024 @ 60HZ Local Pixel Pitch：0.264 x 0.264 mm Support Color：16.7M colors Contrast Ratio：1000:1 Backlight：LED |
| LCD Button | 6 |
| Console USB Hub Ports | 3 x USB 2.0 Type A female |
| Remote Console | 1 RJ45 port for 10/100/1000BASE-T |
| Video Resolution | Local side: 1280 x 1024 (max) Remote side: 1920 x 1080 (max) |
| Keyboard | 100-key chocolate ultra-thin keyboard |
| Touch Pad | 1 |
| Housing | Metal |
| Dimensions (W x D x H) | 445 x 544 x 45mm |
| Weight | 10.44 kg |
| Power Requirement | 12V DC, 4A |
| Installation | 1U rack-mountable |
| Management | |
| Supported Protocol | TCP, IP, HTTP |
| Client Software | IPKVM Software |
| PC Selection | Port select button Hotkeys on keyboard OSD (on screen display) |
| Scan Interval | 3~60 seconds |
| Security | User password and super password DES, AES and 3DES |
| Environment & Certification | |
| Operating Temperature | 0 ~ 50 degrees C |
| Storage Temperature | -20 ~ 60 degrees C |
| Operating Humidity | 0-80% RH, no coagulation |
| Regulatory | CE, FCC |
| Ordering Information | |
|---|---|
IKVM-210-16M |

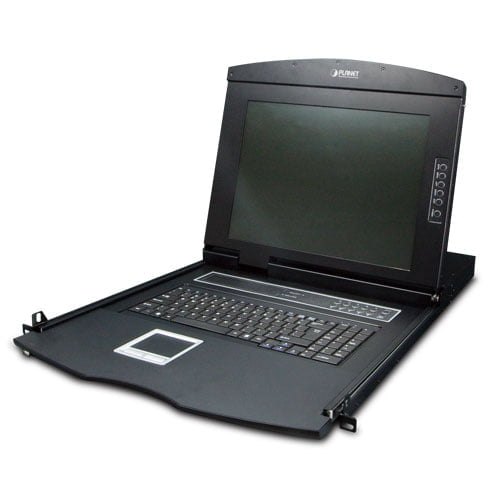

17″ 16-Port Combo VGA LCD IP KVM Switch |
| Accessories | |
|---|---|
KVM-KC1-1.8 |
1.8M USB KVM Cable |
KVM-KC1-3 |
3M USB KVM Cable |
KVM-KC1-5 |
5M USB KVM Cable |
