SKU: MC-1500
| Slot | 15 open slots; 27 x 95 x 71 mm (W x D x H) |
| Dimensions (W x H x D) | 440 mm x 103 mm x 180 mm, 2.4U height |
| Enclosure | Metal |
| Power Requirement | 100-240V AC, 1.8A, 50/60Hz |
| Power Output | +5V DC per slot, 1A minimum |
| DC Output | +5V DC (+/-1%) per slot |
| LED Indicators | 3, Power, Fan A, Fan B (On: operating; Off: device or fan fail) |
| Environment | Temperature: 0~50 degrees C (operating); -20~70 degrees C (storage) Humidity: 0~90% (non-condensing) |
| Compliance | FCC Class A, CE-mark |
| Ordering Information | |
|---|---|
MC-1500 |

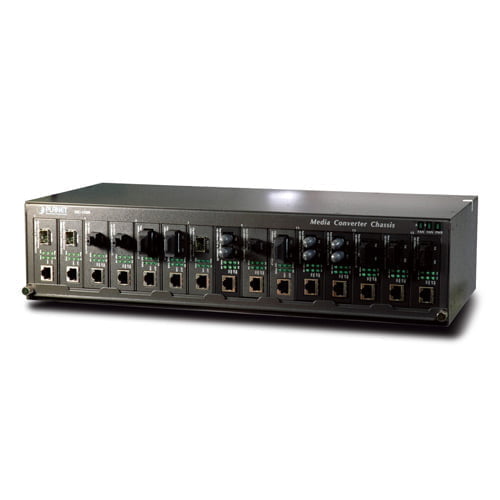

19-inch Media Converter Chassis with 15 Slots |
