SKU: MC-1500R
| Hardware Specifications | |
|---|---|
| Dimensions (W x D x H) | 440 x 180 x 102.3 mm, 2.4U height |
| Slot | 15 open slots (Slot Dimensions (W x D x H) 27 x 95 x 71 mm,) |
| LED | Power 1, Power2, Fan1, Fan2 |
| Fan | 2 x Fan |
| Weight | 4.3kg |
| Power Requirements | 100~240V AC, 3.3A, 50-60Hz |
| Power Output | Each slot 5V DC 1A |
| Power Consumption | 10 watts / 34.1BTU (System only) 80 watts / 272BTU (Full loading) |
| Operating Environment | 0~50 degrees C, 5%~90%RH |
| Storage Environment | -20~70 degrees C, 5%~90%RH |
| Emission | FCC Class A, CE mark |
| Ordering Information | |
|---|---|
MC-1500R |

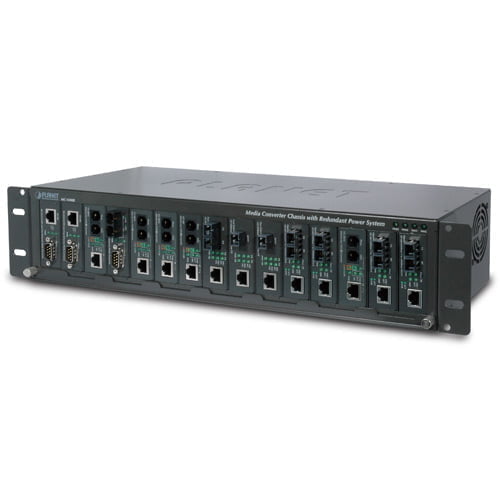

15-Slot Media Converter Chassis (AC Power) |
MC-15RPS48 |
Redundant Power Supply, -48V DC |
MC-15RPS130 |
130W Redundant Power Supply, 100-240V AC |
