SKU: ENW-9801
| Hardware Specifications | |
|---|---|
| Hardware Version | 3 |
| Attachment Interface | PCI Express rev. 2.0 specification x4 Interface |
| Media Interface | SFP+ Connector |
| Optical Module Options | LRM, LR, SR |
| Jumbo Frame | 4K/9K Bytes |
| LED Indicators | LNK Speed (Green) LNK/ACT(Green) |
| Dimensions (W x D x H) | 120 x 133 x 68 mm |
| Weight | 93g |
| Typical Power Consumption | 4.8 watts/16.3BTU |
| Advanced Functions | |
| Layer 2 Features | IEEE 802.3x Flow Control support IEEE 802.1Q VLAN support IEEE 802.1p CoS support |
| Internet Small Computer System Interface (iSCSI) | Yes |
| Fiber Channel over Ethernet (FCoE) | Yes |
| Pre-boot Execution Environment (PXE) | Yes |
| Data Plane Development Kit (DPDK) | Yes |
| Operating System Support | Windows Server 2008R2 64 bits Windows Server 2012R2 64 bits Windows Server 2016R2 64 bits Windows Server 2019R2 64 bits Windows 7 32/64 bits Windows 8 32/64 bits Windows 10 32/64 bits Linux Stable Kernel Version (2.6.32.x to 5.x) Linux CentOS/RHEL (6.x to 7.x) Ubuntu (14.x to 16.x) UOS V20 VMware ESX/ESXi 4.x/5.x/6.x |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3ae 10Gbps Ethernet IEEE 802.3x Flow control and back pressure IEEE 802.1Q VLAN tagging IEEE 802.1AS Timing and synchronization IEEE 802.3ad Link aggregation IEEE 1588 Precision Time Protocol IEEE 802.3az Energy Efficient Ethernet (EEE) |
| Environment | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -10 ~ 85 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Package | |
| Package Contents | ENW-9801 Server Adapter Quick Installation Guide Low Profile Bracket |
| Ordering Information | |
|---|---|
ENW-9801 |

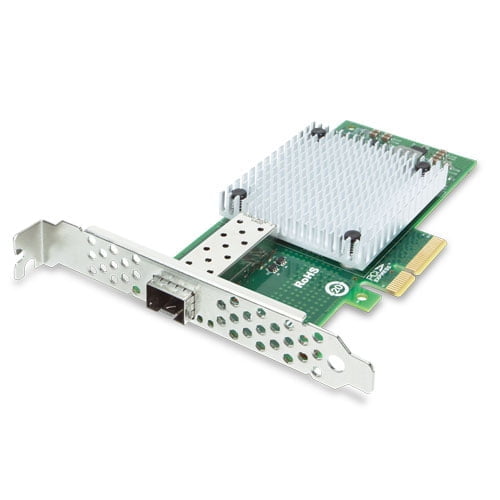

10Gbps SFP+ PCI Express Server Adapter |
