SKU: XST-705A
| Hardware Specifications | |
|---|---|
| Copper Interface | 1 x 10G/5G/2.5G/1G/100BASE-T RJ45 Auto-MDI/MDI-X, auto-negotiation |
| Fiber Optic Interface | 1 x 10GBASE-X SFP+ interface |
| LED | System: PWR (Green) 10G/5G/2.5G/1G/100 BASE-T RJ45 Interfaces: 1G/10G LNK (Amber) 5G/2.5G/100M LNK (Green) |
| ESD Protection | 6KV DC |
| Enclosure | Compact-sized metal case |
| Installation | Desktop or wall mounting |
| Dimensions (WxDxH) | 93.8 x 80.75 x 26.4mm |
| Weight | 182g (device only) |
| Power Requirements | 5V DC, 2A max. |
| Power Consumption | 3.8 watts / 13 BTU per hour (max.) |
| Converter Specifications | |
| Switch Processing Scheme | Store and Forward |
| Flow Control | Copper Interface: Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
| Fabric | 20Gbps |
| Jumbo Frame | 16K |
| Network Cables | 10G/5G/2.5G/1G/100M BASE-T: 10G–Cat. 6A/Cat. 7 5G–Cat. 6/Cat. 6A/Cat. 7 1G/2.5G–Cat. 5e/Cat. 6/Cat. 6A/Cat. 7 100M–Cat. 5/Cat. 5e/Cat. 6/Cat. 6A/Cat. 7 Cat. 5/5e/6/6A/7 UTP cable (100 meters, max.) EIA/TIA-568 100-ohm STP (100 meters, max.) 10GBASE-LR/SR/BX: 50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 300m 9/125μm single-mode fiber optic cable, up to 60km |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Operating environment | 0 ~ 50 degrees C |
| Storage Environment | -10 ~ 70 degrees C |
| Operating Humidity | 5 ~ 95%, relative humidity (non-condensing) |
| Storage Humidity | 5 ~ 95%, relative humidity (non-condensing) |
| Standards Compliance | IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5G/5GBASE-T IEEE 802.3an 10GBASE-T IEEE 802.3ae 10Gbps Ethernet IEEE 802.3x full-duplex flow control (Copper Port) |
| Ordering Information | |
|---|---|
XST-705A |

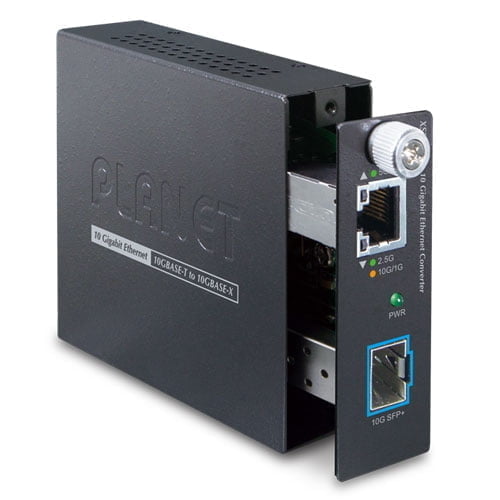

10G/5G/2.5G/1G/100M Copper to 10GBASE-X SFP+ Smart Media Converter |
