SKU: ENW-9701
| Hardware Specifications | |
|---|---|
| Attachment Interface | PCI Express Host Bus Interface, 1 lane PCI Express Rev 1.1 |
| Media Interface | SFP slot (LC Interface) |
| Cabling Options | SFP LC connector : 50/125μm & 62.5/125μm Multi-Mode fiber cable 9/125μm Single-Mode cable |
| Jumbo Frame | 9Kbytes |
| LED Indicators | Link / Active per port |
| Dimensions (W x D) | 121.4 x 119.5mm |
| Advanced Functions | |
| Layer 2 Features | IEEE 802.3x Flow Control support IEEE 802.1Q VLAN support |
| Performance Enhancements | Receive-side scaling (RSS): Optimization for multiple CPUs under Windows OS control Reduced host bus traffic IP, TCP and UDP Checksum Offloading Transmit / Receive On-Chip Buffer Support IPv4, IPv6 |
| OS Support | Windows Server 2008R2/2012R2/2016R2/2019R2/2022R2 64bits Windows 7/8/8.1/10 32/64bits Windows 11 64bits Linux (Kernel version 2.6.x/3.x/4.x or later) VMware® ESX/ESXi 2.6.x/3.x/4.x/5.x/6.x or later MacOS 10.7 |
| Standards Conformance | |
| Regulation Compliance | FCC Part 15 Class B, CE |
| Standards Compliance | IEEE 802.3z：1000BASE-X Gigabit Ethernet IEEE 802.3x：Flow Control and Back pressure IEEE 802.1Q：VLAN Tagging |
| Environment | |
| Operating | Temperature：0 ~ 65 degrees C Relative Humidity：5 ~ 95% (non-condensing) |
| Storage | Temperature：-10 ~ 85 degrees C Relative Humidity：5 ~ 95% (non-condensing) |
| Ordering Information | |
|---|---|
ENW-9701 |

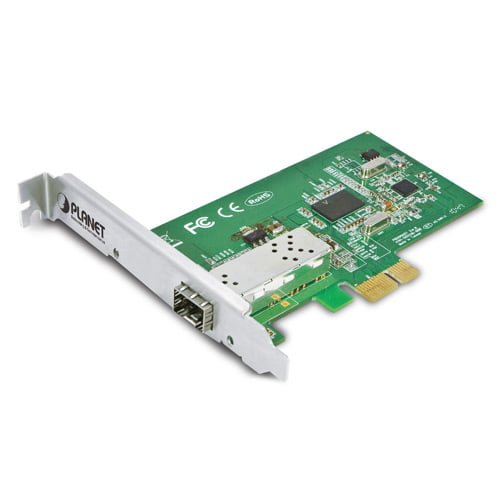

1000BASE-X SFP PCI Express Gigabit Ethernet Adapter |
