SKU: IFT-802T
| Hardware Specifications | |
|---|---|
| 10/100Base-TX Port | 1 RJ-45 auto-MDI / MDI-X port |
| 100Base-FX Port | IFT-802T: 1 SC interface IFT-802TS15: 1 SC interface IFT-805AT: 1 SFP slot |
| Fiber Port Type | IFT-802T: SC / multi-mode IFT-802TS15: SC / single-mode IFT-805AT: Vary on module |
| Cable Distance | IFT-802T: 2km IFT-802TS15: 15km IFT-805AT: Vary on module |
| Optical Frequency | IFT-802T: 1310nm IFT-802TS15: 1310nm IFT-805AT: Vary on module |
| Launch Power (dBm) | Max IFT-802T: -14 IFT-802TS15: 0 Min Vary on module |
| Receive Sensitivity (dBm) | IFT-802T: -32 IFT-802TS15: -32 IFT-805AT: Vary on module |
| Maximum Input Power (dBm) | IFT-802T: -14 IFT-802TS15: 0 IFT-805AT: Vary on module |
| Dimensions (W x D x H) | 32 x 87.8 x 135 mm |
| Weight | 430g |
| Installation | DIN rail kit and wall mount ear |
| Maximum Frame Size | 1522bytes packet size |
| Flow Control | Back pressure for half duplex, IEEE 802.3x pause frame for full duplex |
| Enclosure | IP-30 slim type metal case |
| LED Indicator | System: •Power 1 (Green) •Power 2 (Green) •Fault (Green) 1 x copper port: •10/100 (Green) •LNK/ACT (Green) 1 x 100FX port: •100 (Green) •LNK/ACT (Green) |
| Power Input | 12 to 48V DC redundant power with polarity reverse protection function Single AC 24V power adapter acceptable |
| Power Consumption | 3 watts/ 10BTU (maximum) |
| Protection | ESD (Ethernet): 6KV DC Surge (Power): 6KV DC |
| Speed | Twisted-pair: •10/20Mbps for half / full-duplex •100/200Mbps for half / full duplex Fiber-optic: •200Mbps for full-duplex |
| Network cables | 10/100Base-TX: •2-pair UTP Cat. 3, 4, 5 (100 meters, max.) •EIA/TIA-568 100-ohm STP (100 meters, max.) 100Base-FX: •IFT-802T: Multi-mode optical fiber 62.5/125μm / 50/125μm (2km) •IFT-802TS15: Single-mode optical fiber 9/125μm (15km) •IFT-805AT: SFP slot (depending on SFP module) |
| Standards Conformance | |
| Emissions | FCC Class A, CE Class A |
| Standards Compliance | IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX / 100Base-FX IEEE 802.3x flow control and back pressure |
| Stability Testing | IEC60068-2-32 (Free Fall) IEC60068-2-27 (Shock) IEC60068-2-6 (Vibration) |
| Environment | |
| Operating Temperature | -40~75 degrees C |
| Operating Humidity | 5~95% non-condensing |
| Storage Temperature | -40~85 degrees C |
| Storage Humidity | 5~95% non-condensing |
| Ordering Information | |
|---|---|
IFT-802T |

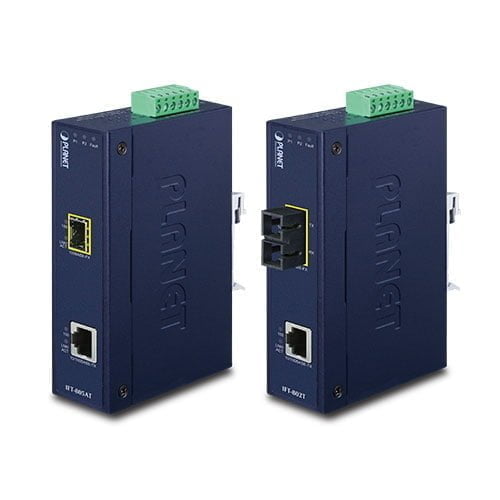

10/100Base-TX to 100Base-FX Industrial Media Converter – 2km (-40~75 degrees C) |
IFT-802TS15 |
10/100Base-TX to 100Base-FX Industrial Media Converter – 15km (-40~75 degrees C) |
IFT-805AT |
10/100Base-TX to 100Base-FX (SFP) Industrial Media Converter (-40~75 degrees C) |
| Accessories | |
|---|---|
MFB-TFX |
SFP-Port 100Base-FX Module; LC, Multi-Mode (1310nm) – 2km <br> (-40~75℃) |
MFB-TF20 |
SFP-Port 100Base-FX Module; LC, Single Mode (1310nm) – 20km <br> (-40~75℃) |
MFB-FX |
SFP-Port 100Base-FX Module; LC, Multi-Mode (1310nm) – 2km <br> (0~50℃) |
MFB-F20 |
SFP-Port 100Base-FX Module; LC, Single Mode (1310nm) – 20km <br> (0~50℃) |
MFB-F40 |
SFP-Port 100Base-FX Module; LC, Single Mode (1310nm) – 40km <br> (0~50℃) |
MFB-F60 |
SFP-Port 100Base-FX Module; LC, Single Mode (1310nm) – 60km <br> (0~50℃) |
MFB-FA20 |
SFP-Port 100Base-BX Module; WDM / Bidi LC, Single Mode (TX:1310nm, RX:1550nm) – 20km (0~50℃) |
MFB-FB20 |
SFP-Port 100Base-BX Module; WDM / Bidi LC, Single Mode (TX:1550nm, RX:1310nm) – 20km (0~50℃) |
