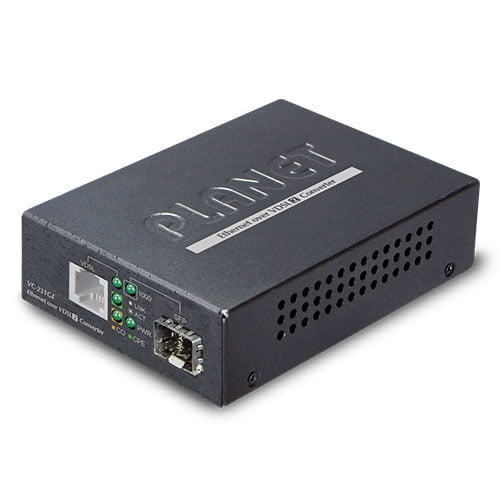

1-Port 1000BASE-X SFP + 1-Port RJ11 VDSL2 Converter VC-231GF

Hardware Specifications
LAN Port	1 1000BASE-SX/LX SFP interface
VDSL Port	1 VDSL2 RJ11 female phone jack Twisted-pair telephone wires (AWG-24 or better) up to 1.4km
Phone Port	Additional splitter for POTS connection
DIP Switch & Functionality	4-position DIP switch ■ CO or CPE mode selectable ■ Selectable G.INP and interleaved mode ■ Selectable target band plan ■ Selectable target SNR mode
LED Indicators	1 Power: Green 1 1000BASE-SX/LX LNK/ACT: Green 1 VDSL: Green 1 CO: Green 1 CPE: Green
ESD Protection	6KV DC
Enclosure	Metal
Installation	Wall mount or DIN rail with optional kit
Dimensions (W x D x H)	94 x 70.3 x 26.2 mm
Weight	206g
Power Requirements	DC 5V, 2A external power
Power Consumption	4.3 watts/14BTU (maximum)
Switch Specifications
Switch Processing Scheme	Store-and-Forward
Address Table	2K entries
Flow Control	Back pressure for half duplex IEEE 802.3x pause frame for full duplex
Maximum Packet Size	1522bytes
System Specifications
VDSL Compliance	VDSL-DMT ■ ITU-T G.993.1 VDSL ■ ITU-T G.997.1 ■ ITU-T G.993.2 VDSL2 (Profile 17a/30a support) ■ ITU-T G.993.5 G.Vectoring ■ ITU-T G.998 ■ G.INP
ADSL Compliance	Capable of ADSL2/2+ standard ■ ITU G.992.3 G.dmt.bis ■ ITU G.992.5 G.dmt.bisplus Data Rate: Up to 24Mbps
Performance* (Downstream/Upstream)	Interleave, Asym, 8dB 　200M –-> 190Mbps/87Mbps 　400M –-> 161Mbps/60Mbps 　600M –-> 118Mbps/36Mbps 　800M –-> 59Mbps/24Mbps 　1000M –> 47Mbps/7Mbps 　1200M –> 39Mbps/4Mbps 　1400M –> 25Mbps/4Mbps Interleave, Sym, 8dB 　200M –-> 147Mbps/139Mbps 　400M –-> 112Mbps/110Mbps 　600M –-> 75Mbps/73Mbps 　800M –-> 44Mbps/44Mbps 　1000M –> 26Mbps/25Mbps 　1200M –> 24Mbps/13Mbps 　1400M –> 20Mbps/9Mbps G.INP, Asym, 8dB 　200M –-> 197Mbps/101Mbps 　400M –-> 168Mbps/65Mbps 　600M –-> 109Mbps/34Mbps 　800M –-> 65Mbps/20Mbps 　1000M –> 53Mbps/7Mbps 　1200M –> 44Mbps/4Mbps 　1400M –> 28Mbps/4Mbps G.INP, Sym, 8dB 　200M –-> 150Mbps/150Mbps 　400M –-> 117Mbps/117Mbps 　600M –-> 77Mbps/77Mbps 　800M –-> 43Mbps/43Mbps 　1000M –> 29Mbps/28Mbps 　1200M –> 27Mbps/15Mbps 　1400M –> 22Mbps/10Mbps Interleave, Asym, 12dB 　200M –-> 178Mbps/84Mbps 　400M –-> 143Mbps/53Mbps 　600M –-> 99Mbps/32Mbps 　800M –-> 48Mbps/22Mbps 　1000M –> 41Mbps/5Mbps 　1200M –> 33Mbps/3Mbps 　1400M –> 23Mbps/3Mbps Interleave, Sym, 12dB 　200M –-> 135Mbps/127Mbps 　400M –-> 96Mbps/96Mbps 　600M –-> 61Mbps/59Mbps 　800M –-> 40Mbps/40Mbps 　1000M –> 23Mbps/18Mbps 　1200M –> 22Mbps/9Mbps 　1400M –> 16Mbps/7Mbps G.INP, Asym, 12dB 　200M –-> 185Mbps/89Mbps 　400M –-> 148Mbps/54Mbps 　600M –-> 95Mbps/32Mbps 　800M –-> 58Mbps/14Mbps 　1000M –> 46Mbps/6Mbps 　1200M –> 37Mbps/3Mbps 　1400M –> 25Mbps/3Mbps G.INP, Sym, 12dB 　200M –-> 140Mbps/140Mbps 　400M –-> 97Mbps/97Mbps 　600M –-> 60Mbps/60Mbps 　800M –-> 35Mbps/35Mbps 　1000M –> 26Mbps/21Mbps 　1200M –> 25Mbps/11Mbps 　1400M –> 18Mbps/8Mbps
Standards Conformance
Standards Compliance	IEEE 802.3z Gigabit SX/LX IEEE 802.3x Full-duplex flow control IEEE 802.1p Class of Service ITU-T G.993.1 VDSL ITU-T G.997.1 ITU-T G.993.2 VDSL2 (Profile 17a/30a support) ITU-T G.993.5 G.Vectoring & G.INP ITU-T G.998
xDSL Compatibility
VDSL2	VC-231G VC-231GP VC-234G VC-231 VC-820M VDR-301N
	* Performace is based on the VC-231GF (CO mode) that coworks with PLANET VC-231G (CPE mode). The actual data rate will vary on the quality of the copper wire and environmental factors.

Ordering Information
VC-231GF	1-Port 1000BASE-X SFP + 1-Port RJ11 VDSL2 Converter (30a profile w/G.Vectoring)

Brand: PLANET
Subcategorie: Media convertor VDSL2
Software: Fara management
Tip echipament: OFFICE
compari: Media convertor
Numar porturi SFP+: 1 x 1G
Poe: NON POE
Numar Porturi RJ11: 1 x VDSL2

Fișă tehnică (PDF)
Manual instalare (PDF)

VC-231GF
