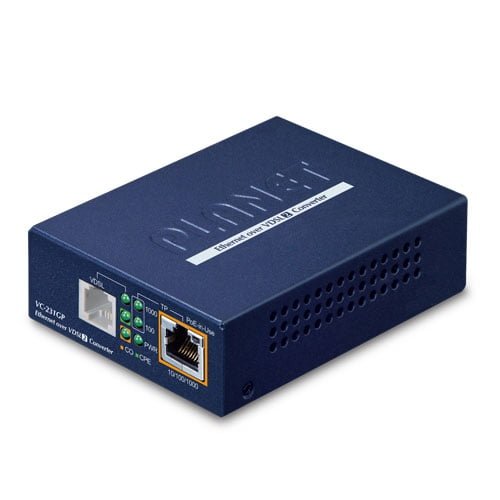

1-Port 10/100/1000T 802.3at PoE+ Ethernet to VDSL2 Converter VC-231GP

Hardware Specifications
LAN Port	1 10/100/1000BASE-T RJ45 auto-MDI/MDI-X port
VDSL Port	1 VDSL2 RJ11 female phone jack Twisted-pair telephone wires (AWG-24 or better) up to 1.4km
Phone Port	Additional splitter for POTS connection
DIP Switch & Functionality	4-position DIP switch ■ CO or CPE mode selectable ■ Selectable G.INP and interleaved mode ■ Selectable target Band plan ■ Selectable target SNR mode
LED Indicators	1 Power: Green 1 1000BASE-T LNK/ACT: Green 1 100BASE-TX LNK/ACK: Green 1 VDSL: Green 1 CO: Green 1 CPE: Green 1 PoE-in-use: Amber
ESD Protection	6KV DC
Enclosure	Metal
Installation	Wall mount or DIN rail with optional kit
Dimensions (W x D x H)	94 x 70.3 x 26.2 mm
Weight	206g
Power Requirements	DC 54V, 0.74A external power
Power Consumption (VDSL2 + Ethernet + PoE)	CO Mode: 32.4 watts/110BTU CPE Mode : 32 watts/109BTU
Power Over Ethernet
PoE Standard	IEEE 802.3at PoE+ PSE
PoE Power Output Budget	DC 52V, 30 watts
PoE Power Supply Type	End-span
Power PIN Assignment	1/2(+), 3/6(-)
Switch Specifications
Switch Processing Scheme	Store-and-Forward
Address Table	2K entries
Flow Control	Back pressure for half duplex IEEE 802.3x pause frame for full duplex
Maximum Packet Size	1522 bytes
System Specifications
VDSL Compliance	VDSL-DMT ■ ITU-T G.993.1 VDSL ■ ITU-T G.997.1 ■ ITU-T G.993.2 VDSL2 (Profile 17a/30a support) ■ ITU-T G.993.5 G.Vectoring ■ ITU-T G.998 ■ G.INP
ADSL Compliance	Capable of ADSL2/2+ standard ■ ITU G.992.3 G.dmt.bis ■ ITU G.992.5 G.dmt.bisplus Data Rate: Up to 24Mbps
Performance* (Downstream/Upstream)	Interleave, Asym, 8dB 　200M –-> 190Mbps/90Mbps 　400M –-> 163Mbps/64Mbps 　600M –-> 110Mbps/34Mbps 　800M –-> 73Mbps/18Mbps 　1000M –> 49Mbps/10Mbps 　1200M –> 39Mbps/8Mbps 　1400M –> 25Mbps/6Mbps Interleave, Sym, 8dB 　200M –-> 149Mbps/141Mbps 　400M –-> 116Mbps/115Mbps 　600M –-> 72Mbps/70Mbps 　800M –-> 45Mbps/44Mbps 　1000M –> 26Mbps/16Mbps 　1200M –> 26Mbps/12Mbps 　1400M –> 29Mbps/12Mbps G.INP, Asym, 8dB 　200M –-> 192Mbps/93Mbps 　400M –-> 159Mbps/64Mbps 　600M –-> 106Mbps/37Mbps 　800M –-> 68Mbps/19Mbps 　1000M –> 49Mbps/8Mbps 　1200M –> 29Mbps/8Mbps 　1400M –> 26Mbps/6Mbps G.INP, Sym, 8dB 　200M –-> 150Mbps/150Mbps 　400M –-> 114Mbps/113Mbps 　600M –-> 69Mbps/69Mbps 　800M –-> 49Mbps/39Mbps 　1000M –> 27Mbps/24Mbps 　1200M –> 26Mbps/12Mbps 　1400M –> 21Mbps/11Mbps Interleave, Asym, 12dB 　200M –-> 177Mbps/83Mbps 　400M –-> 145Mbps/57Mbps 　600M –-> 92Mbps/31Mbps 　800M –-> 59Mbps/15Mbps 　1000M –> 44Mbps/10Mbps 　1200M –> 32Mbps/6Mbps 　1400M –> 22Mbps/3Mbps Interleave, Sym, 12dB 　200M –-> 136Mbps/129Mbps 　400M –-> 100Mbps/101Mbps 　600M –-> 58Mbps/57Mbps 　800M –-> 42Mbps/36Mbps 　1000M –> 23Mbps/12Mbps 　1200M –> 23Mbps/10Mbps 　1400M –> 17Mbps/11Mbps G.INP, Asym, 12dB 　200M –-> 177Mbps/85Mbps 　400M –-> 144Mbps/51Mbps 　600M –-> 87Mbps/29Mbps 　800M –-> 55Mbps/15Mbps 　1000M –> 40Mbps/8Mbps 　1200M –> 38Mbps/8Mbps 　1400M –> 26Mbps/4Mbps G.INP, Sym, 12dB 　200M –-> 136Mbps/133Mbps 　400M –-> 97Mbps/102Mbps 　600M –-> 54Mbps/56Mbps 　800M –-> 40Mbps/35Mbps 　1000M –> 24Mbps/22Mbps 　1200M –> 24Mbps/9Mbps 　1400M –> 18Mbps/12Mbps
Standards Conformance
Standards Conformance	IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Full-duplex flow control IEEE 802.1p Class of Service IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus ITU-T G.993.1 VDSL ITU-T G.997.1 ITU-T G.993.2 VDSL2 (Profile 17a/30a support) ITU-T G.993.5 G.Vectoring & G.INP ITU-T G.998
xDSL Compatibility
VDSL2	VC-231G VC-234G VC-231 VC-234 VC-820M VDR-301N
Environment
Temperature	Operating: 0~50 degrees C Storage: -10~70 degrees C
Humidity	Operating: 5~95% (non-condensing) Storage: 5~95% (non-condensing)

Ordering Information
VC-231GP	1-Port 10/100/1000T 802.3at PoE+ Ethernet to VDSL2 Converter (30a profile w/G.Vectoring)

Brand: PLANET
Subcategorie: Media convertor VDSL2
Software: Fara management
Tip echipament: OFFICE
compari: Media convertor
Numar Porturi RJ45: 1 x 10/100Mbps
Poe: POE
Numar Porturi RJ11: 1 x VDSL2

Fișă tehnică (PDF)
Manual instalare (PDF)
